Non-Metallic Gaskets are made of Graphite with or without insertion, Asbestos-free, Rubber or Teflon materials. Soft gaskets are used in a wide range of applications. It can be produced in a variety of cut shapes or can be provided in sheet or rolls.

Flat Ring Gasket Used With Raised Face Flanges

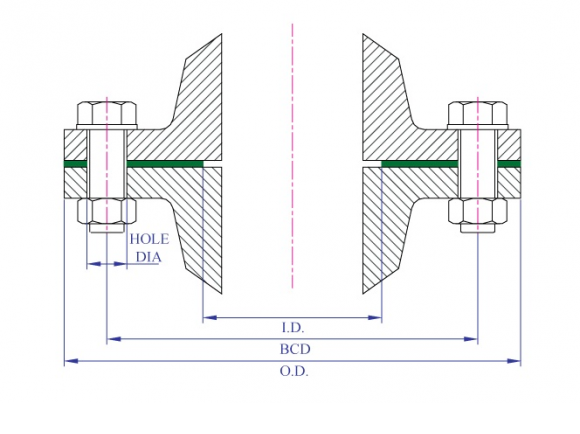

Full Face Gasket Used With Flat Face Flanges

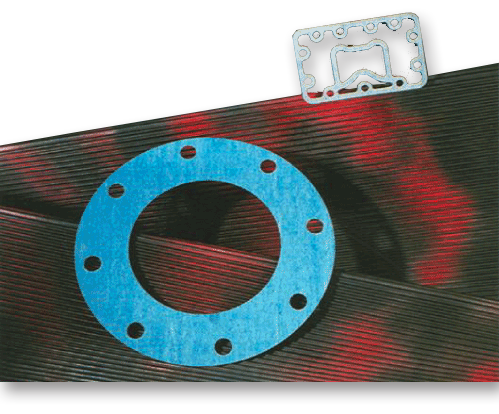

BLUEGARD Gasketing

BLUE GARD gasketing provides superior sealability and excellent creep relaxation. BLUE GARD gasketing is pro­duced from special blends of synthetic fibers, fillers and elastomeric binders. BLUE GARD gasketing serves as a general purpose gasket material across a wide range of industrial applications. STYLE 3000 Water, aromatic hydrocarbons, oils, gasoline, mild acids and alkalies. STYLE 3400, 3200 Water, saturated steam, inert gas, mild acids and alkalies. STYLE 3700 Water, saturated steam, mild acids, strong caustics of moderate concentrations

COMPRESSED INORGANIC FIBER Gasketing

A specially formulated, all purpose family of Garlock inorganic asbestos-free fiber gasketing which exceeds the parameters of aramid fiber reinforced gasketing in thermal stability, torque retention, sealability and weight loss. As inorganic fibers do not oxidize IFG 5500 provides greater thermal and dimensional stability during process cycling. IFG is produced to meet most service requirements. The IFG material also offers flexibility when writing corporate piping specifications – giving you the right gasket for the right application – the first time.
IFG 5500 Water, saturated steam, aliphatic, hydrocarbons, oils, gasoline and mild acids.

GYLON Gasketing

Garlock GYLON gasketing is truly a superior and unique material. The exclusive properties of GYLON gasketing are combined to deliver its superior per­formance to comply with today’s clean air requirements through sealability and torque retention. Asbestos-free GYLON gasketing routinely outperforms all conventional PTFE products by drastically minimizing gasket creep and cold flow problems. Typical conditions for GYLON gasketing are found in the food, chemical and petrochemical industry, pulp and paper plants and phar­maceutical industry. For special chemicals consult the chemical resistance chart or contact Garlock.

GYLON Style 3500 and 3501 E Standard
These general purpose gasketing materials offer significant advantages over conventional PTFE in regard to functionability at higher temperature/pressure combinations. Style 3500 and 3501 E GYLON gasketing conform to FDA spe­cifications. Often used in chemical processing and hydrocarbon processing industries.

GYLON Style 3504 Blue
Style 3504 GYLON gasketing is very compressible due to its inorganic micro­spheres, thus sealing more effectively under lower bolt loads. This excellent gasketing material is ideal for use with glass-lined equipment and wherever lower bolt loads to effect an efficient seal are necessary. Can replace PTFE envelope gaskets in many instances. Conforms to FDA specifications.

GYLON Off-White Style 3510
Style 3510 GYLON has a very wide chemical resistance (the optimum of all the GYLON gasketing products). It is particularly suited for service against hydrofluoric acid and other strong chemicals such as potassium and sodium hydroxide, hydrogen fluoride, aluminium fluoride and chrome plating solutions. Conforms to FDA specifications.

GYLON Style 3545
GYLON Style 3545 consists of a highly compressible outer layer of microcel­lular PTFE and rigid PTFE core which reduced the cold flow and creep. Where by both components have been sintered together homogeneously. These materials are made of pure PTFE without fillers. Style 3545 provides a very soft surface, particularly suited for flanges with uneven surfaces and where bolts can not be tightened strongly.

GYLON Style HP 3560
Special GYLON gasketing with a perforated stainless steel insert for agressive chemicals and hostile environments where safety and blow-out resistance is essential
